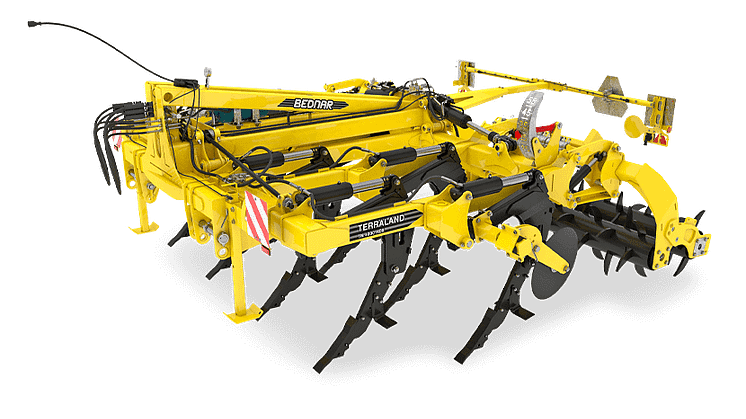

A new TERRALAND TN 4000 HD9 chisel plough model in the folding configuration

The TERRALAND TN chisel ploughs have been one of the best-selling machines by BEDNAR for many years. Their popularity is still the same and customers who have purchased these machines benefit from the many agronomic advantages they offer (quality soil cultivation in one pass, also below the subsoil, a higher output with low consumption, soil aeration or disruption of hardened soil layers).

“TERRALAND is one of our highly successful products. It is one of the products that customers immediately link to BEDNAR. We deliver hundreds of these machines every year. Besides the agronomic advantages, TERRALAND TN also brings a series of structural and technical advantages that the customer benefits from, such as the extended service life of the machine or easier control.Since the sale and popularity of large wheel tractors with an output exceeding 350 HP are increasing, we decided to expand our model series of chisel ploughs with the new TERRALAND TN 4000 HD9 folding model,“ Jan Bednář, the Sales Director, describes the reason for expanding the portfolio.

New Version with a Transport Width of 3 m
The basic part of the TERRALAND TN 4000 HD9 chisel plough is a highly robust frame made of high-strength Alform steel. It provides high robustness and durability at work, even atthe maximum depth of 65 centimetres. The TERRALAND TN 4000 HD9 chisel plough is fitted with nine tines with a spacing of 45 centimetres between the individual tines. The tines have hydraulic NON-STOP protection for demanding rocky conditions and heavy or hardened soils.The folding configuration is the main advantage of the TERRALAND TN 4000 HD9 chisel plough. It provides safe transport of the machine as the transport width does not exceed the permitted 3 metres.

2in1 Professional Design: Chisel Plough and Subsoiler
The TERRALAND TN chisel ploughs provide customers with an option to use the machine differently during the year or in relation to the current weather changes thanks to easy replacement of the working parts. For deep loosening, we recommend fitting the machine with the ACTIVE-MIX tines that have a special shape for mixing crop residue with soil, disrupting hardened layers and deep cultivation. In summer or right after cultivating headlands or rail lines, it is suitable to use the ZERO-MIX tines that aerate and disrupt the hardened soil layer but do not mix the soil to prevent evaporation of soil moisture.

The ACTIVE-MIX tines can be fitted with chisels with widths of 70 or 40 mm in the standard version, or the LONG-LIFE chisels fitted with carbide tips. We recommend using the 40-mm chisels for intense loosening, demanding conditions or when working at the maximum depth. In this market segment, the chisels represent an interesting benefit that no other competitor offers. In case of the ZERO-MIX tines, the machine is equipped with chisels with a width of 60 mm.

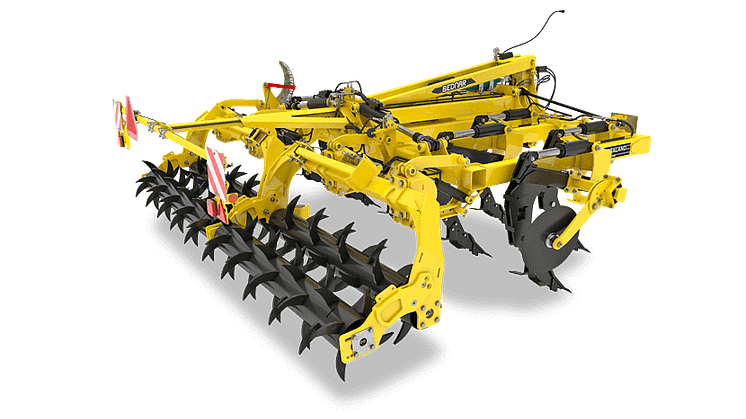

The TERRALAND TN 4000 HD9 chisel plough can be equipped with rear packers, such as the hydraulically adjustable spiked double-roller, the Cutpack (a suitable combination with ZERO-MIX tines)or the V-RING packer with a diameter of 630 mm.
