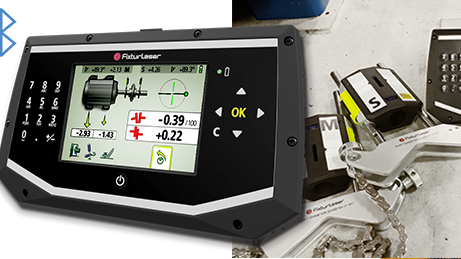

Fixturlaser ECO - an affordable precision instrument.

The Fixturlaser ECO is an affordable precision instrument created specifically for horizontal shaft alignment. In addition to providing Fixturlaser’s industry-leading ease-of-use, the Fixturlaser ECO comes with wireless sensor units, a 4” color display, rechargeable batteries and an IP65-certified design that can withstand harsh environments.

• Integrated Bluetooth
• Lifetime Warranty
• Pre-mounted Sensors
• 4” Full-Color Screen
• Integrated Verti-Zontal Software
• Screen Flip
• 8 hours of continuous-use battery time
• CCD Sensor Technology


  Fixturlaser ECO have the uniqe function VertiZontal.
  VertiZontal  is a shaft alignment process to allow the aligner to make both vertical and horizontal alignment corrections with a single measurement, or spin of the shafts. It’s touted as making shaft alignments faster and more accurate.
  But here’s what it means  – it makes shaft alignment EASIER!

  • If you can roll the shafts only two times – once to measure and correct, and one more time to confirm and store the corrected alignment, it is faster. On a small pump, it’s not a problem to rotate the shafts numerous times. But sometimes the rotor is 15 tons, and it must be rolled using a 6 inch nylon strap and a spud wrench, all attached to a 50 ton bridge crane. Less rotation means less times I worry about damaging something by this process.
  • If you have to lie down on the motor, with an eye bolt stuck in my belly, to tighten and loosen the foot bolts, it means you don’t have to do that as many times.
  • If you have to tighten and loosen the foot bolts each time with a “knock wrench” and an 8 pound sledge hammer, it means much less hard manual labor.
  • It means much less tightening and loosening of the bolts.
  • It means much less climbing up and down cooling towers to make adjustments and re-measure.
  • It means fewer times shimming, hammering, prying, lifting, sweating, and so on.

  LIFETIME Warranty

  Fixturlaser ECO have a lifetime warranty. The warranty is valid under condition that the system is calibrated and updated at least once every 24 month by an authorized Fixturlaser service center.
