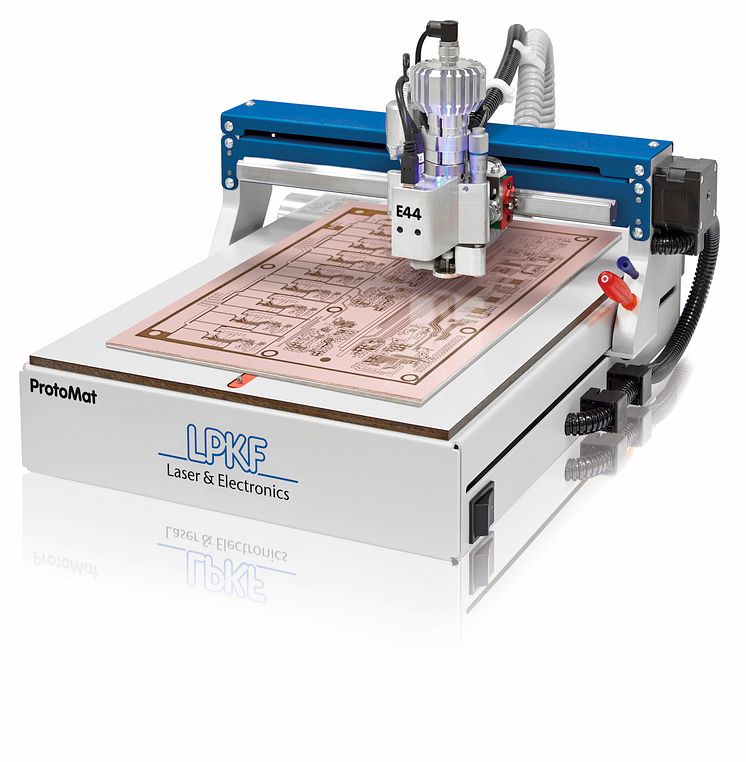

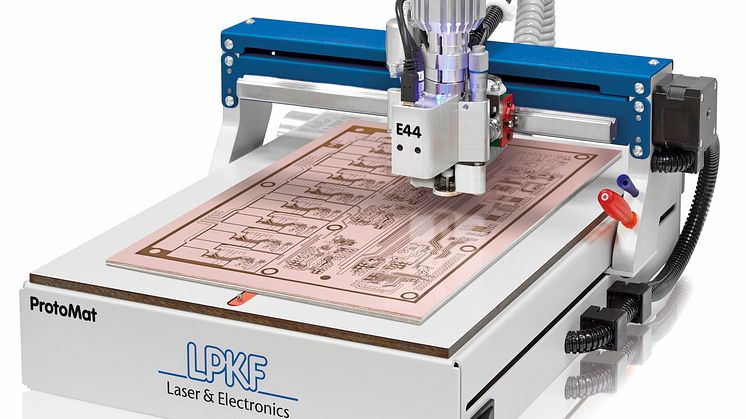

The LPKF ProtoMat E44 is a low-cost introduction to the world of professional in-house printed circuit board prototyping.

The LPKF ProtoMat E44 is a low-cost introduction to the world of professional
in-house printed circuit board prototyping. The LPKF ProtoMat E44 will structure
single- or double-sided circuit boards, drill holes for through-plating and cut individual
boards from the base material.

The LPKF ProtoMat E44 has a 40 000 rpm spindle and the maximum travel speed is
up to 100 mm per second. The LPKF ProtoMat E44 has a manual tool change and a
collet with a precise height adjustment by micrometer screw.

With a resolution of less than 1 μm, a repeat accuracy of ± 5 μm, and a precision of
± 20 μm in the fitting hole system, the small ProtoMat circuit board plotters are more
than able to meet the demands of milling single- and double-sided printed circuit boards.

Registry System and Camera

In addition to increased positioning accuracy with double-sided printed circuit boards,
the camera with its measuring function enables milled slots to be set more easily for
the LPKF ProtoMat E44. After the measuring process, the machine software helps the
user arrive at the optimum setting.

Registry systems are indispensable for processing double-sided printed circuit boards.
They hold the processed circuit boards securely in position, even after the boards are
turned over for structuring the second side. With the LPKF ProtoMat E44, a camera helps
with positioning: It detects fiducials or geometric structures and orients the structuring
process accordingly.

Software Package

The supplied CAM software LPKF CircuitPro simplifies the process of arriving at
solutions for production requirements, providing extensive access to all process
parameters. A comprehensive parameter library for many commonly used materials
supports the users in their own projects.

For more information contact SOLECTRO AB your LPKF distributor in Sweden,
Denmark and Norway.
