High-performance DC servo motor with integrated motor controller

Pressmeddelande -

High-performance DC servo motor with integrated motor controller

With the PD6-C Nanotec introduces a brushless DC servo motor with integrated controller that delivers very high power density in relation to its size. The PD6-C is the largest motor of Nanotec’s Plug&Drive family and is available in two versions – as a high-pole stepper motor in various lengths with a maximum nominal torque of 8.8 Nm, as well as a low-pole BLDC motor with a flange size of 80 or 86 mm and a nominal output of 534 W. Both motor types are designed for 12-48 V supply voltages.

The motor controller and the encoder with 4096 increments are integrated in the motor, therefore cabling is limited to the communication connection and power supply. All Plug&Drive motors use field-oriented control via encoder and can be operated in torque, speed, or positioning mode. Reference values are set either by clock-direction, two analog inputs, or the CANopen field bus.

The controller is programmed with the programming language NanoJ V2 so that real-time programs for time-critical applications can be run directly on the motor. In stand-alone operation the motor will carry out complex control tasks without a field bus connection. For parameterization a USB port is available.

The PD6-C is ideally suited for applications that require high power density and high efficiency as well as compact size, for example in service robotics or mechanical engineering.

We are your Nanotec reseller in Sweden.
SOLECTRO AB
www.solectro.se

Ämnen

Kategorier

Regioner


Solectro AB grundades 1983 av Gerhard Tetzlaff.

Verksamheten omfattas av utveckling, produktion, försäljning och service av komponenter för automatisering, komplettlösningar, specialmaskiner, robotar, CNC-maskiner,PCB-prototying, laser, SMD samt dentalmaskiner.

Solectro AB är beläget i Lomma - ca. 10 minuter från Malmö och Lund.

Adress:
Tenngatan 6 - 8, 234 35 LOMMA

Tel. 040-536600
Fax 040-536610
E-mail: solectro@solectro.se
www.solectro.se

Kontakter

  • DC-servo PD6-C from nanotec

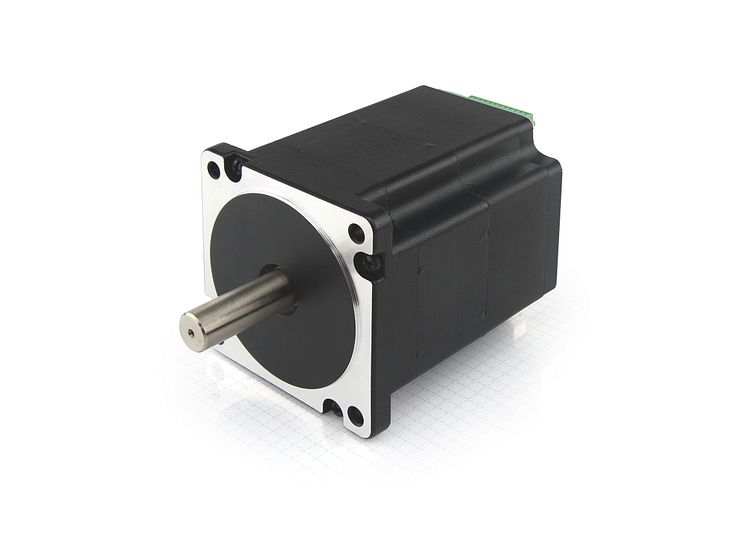

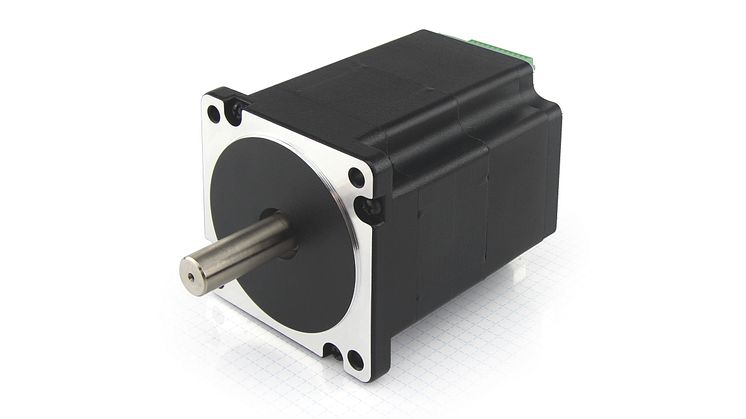

    DC-servo PD6-C from nanotec
