Compact Disconnect Terminal Blocks with Automatic Converter Protection

Press release -

Compact Disconnect Terminal Blocks with Automatic Converter Protection

Phoenix Contact now offers pluggable measuring transducer disconnect terminal blocks with a disconnect element that can swivel. The compact PTME 6 series is designed for wire cross-sections up to 6 mm² / 10 mm² and uses the standardised bridge, marking, and test accessories of the ‘Clipline complete’ modular terminal block system.

Another new feature is the short-circuit connector that automatically establishes a leading current transformer short circuit. This ensures a high degree of safety and reliability in current transformer measuring circuits. In conjunction with the associated base terminal, incorrect user actions as well as destruction of the connected current transformers can be completely ruled out. Furthermore, this series of terminals combines a disconnect terminal with the Combi plug system. This means that it is now possible to build complete switching systems as well as the associated measuring transducers using nothing but pluggable components. All of the connectors can be simply coded, reliably preventing false connections.

The measuring transducer, disconnect terminals feature push-in connector technology. As a result, conductor contact is established by the plugging process itself – without the need for any tools. To remove the conductor, the user only needs to press the release button.

More information about test disconnect terminal blocks

Related links

Topics

Categories


Phoenix Contact, founded over 80 years ago, is a leading manufacturer of electric connection and industrial automation technology. 11,000 employees, 47 own sales companies and 30 sales partner worldwide ensure customer proximity.

Our work is dedicated to the creation of progress with inspiring, innovative solutions and to a trusting partnership towards our customers and partners with common benefits.

Contacts

  • Compact Disconnect Terminal Blocks with Automatic Converter Protection

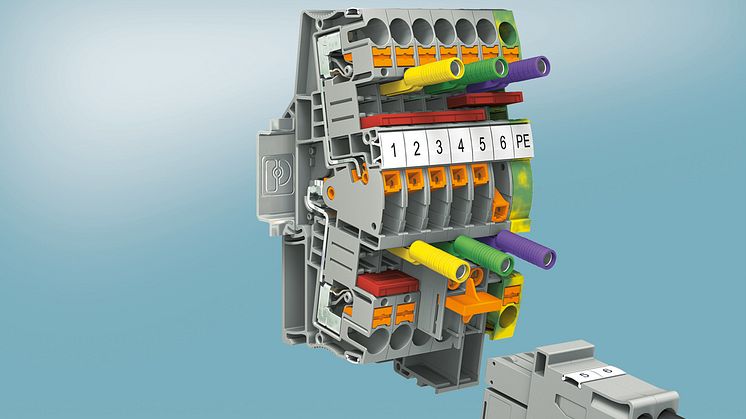

    Compact Disconnect Terminal Blocks with Automatic Converter Protection
