Connect contact inserts in no time

Press release -

Connect contact inserts in no time

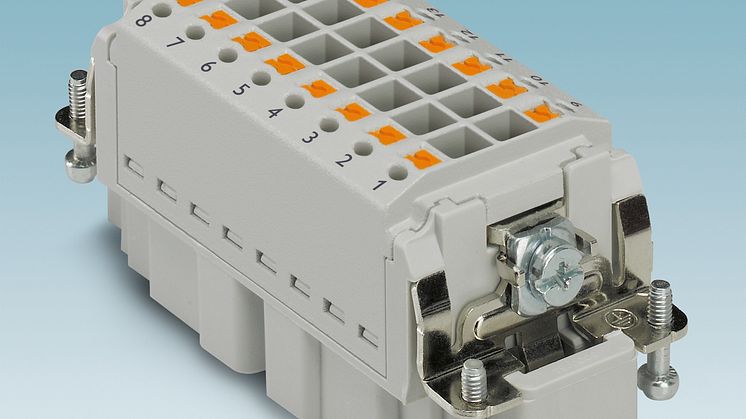

The Heavycon-B and Heavycon-HV contact inserts from Phoenix Contact are now available with Phoenix Contact’s push-in connector technology.

The B-series includes pin and socket inserts with 6, 10, 16, or 24 pins for 500 V and 16 A. High-voltage inserts with 3, 6, or 10 pins plus two delayed mating contacts for 830 V and 16 A are also available.

Rigid and flexible conductors with end sleeves of up to 2.5 mm² can be easily plugged directly into the inserts. The orange pusher provides a defined, safe-to-use opening mechanism used to release the connection. It can be triggered even when installed on the inside of a control cabinet. The HC-CP red plug coding from Phoenix Contact has been included to prevent incorrect connections. It is much easier to use than standard pin/socket or pin coding.

More information about heavy duty connectors
