Feed-in terminal for N busbars with Push-in connection

Press release -

Feed-in terminal for N busbars with Push-in connection

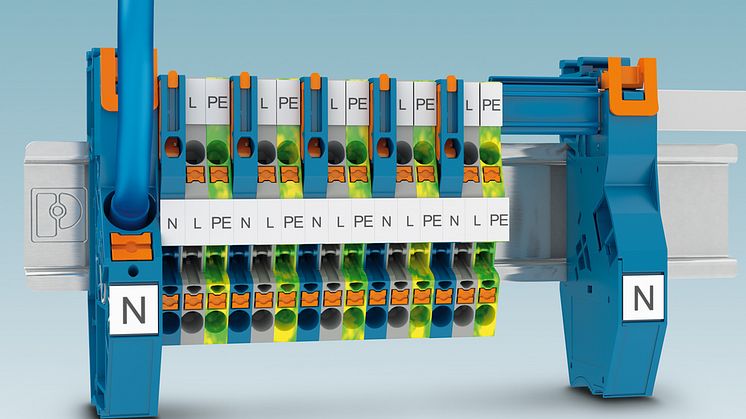

With the new PTI-16-NLS-FI feed-in terminals from Phoenix Contact, neutral busbars are contacted easily and without tools. The 3 x 10 mm busbar is mechanically secured by a locking tab. At the side, the busbar has a cover protecting it from touching.

Cross sections up to 16 mm² can be connected with this feed-in terminal. The large-surface marking option provides for clarity in wiring. Thanks to the integrated end bracket and support bracket function, additional space is saved in the installation distributor.

A 2.3 mm standard test point for easy testing is also included. The new feed-in terminals are compatible with the Phoenix Contact installation system.
