Knife disconnect terminal blocks in compact desk design

Press release -

Knife disconnect terminal blocks in compact desk design

The new PTTBS 2,5-2MTB double-level knife disconnect terminal blocks with push-in connection in compact desk design from Phoenix Contact feature numerous advantages: They provide a disconnect option in every level as well as clear assignment of the disconnect knife to the contact points by means of a colour actuation lever and disconnect knife. Two function shafts before and after the disconnect point enable flexible potential distribution. Level bridges provide convenient potential bridging of levels. In addition, there is a 2.3 mm test connection at every contact point.

For various switching tasks in MCR technology, an isolating plug, feed-through metal, component connector for the solder-free installation of electronic components or a fuse plug for 5 x 20 glass tube fuses can be used individually in the universal disconnect zone of the PTTBS 2,5-TGB knife disconnect terminal blocks.

The knife disconnect terminal blocks use the system accessories from the Clipline complete modular terminal block system. The push-in connection technology enables conductors to be wired directly and without using any tools. With up to 50% lower insertion forces, insertion and contacting is easier. High contact forces that exceed those required by the relevant standards ensure reliable and high-quality conductor contacting. The conductors are released using a new type of button, which can be actuated using various tools.


Topics

Categories


Phoenix Contact, founded over 80 years ago, is a leading manufacturer of electric connection and industrial automation technology. 12,800 employees, 47 own sales companies and 30 sales partner worldwide ensure customer proximity.

Our work is dedicated to the creation of progress with inspiring, innovative solutions and to a trusting partnership towards our customers and partners with common benefits.

Contacts

  • Knife disconnect terminal blocks in compact desk design

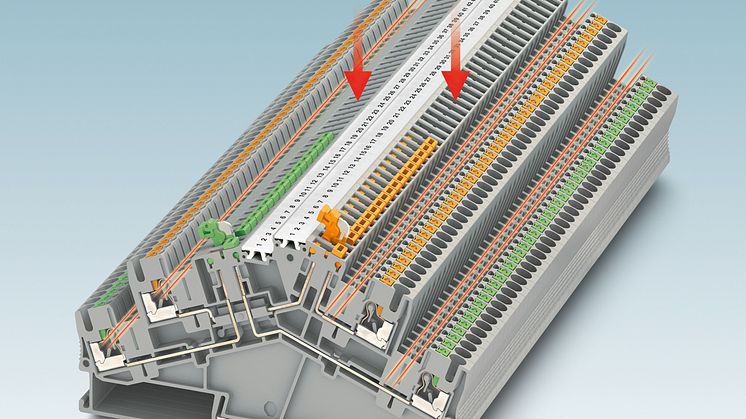

    Knife disconnect terminal blocks in compact desk design
