PC Board Connection for High-Current Applications without Tools

With its PLA 5 and PLH 5 PC terminal blocks, Phoenix Contact expands its series of conductor connections for high-current applications that do not require any tools.

The lever actuated PLA 5 terminals with 30 degrees and PLH 5 horizontal conductor outlet can accommodate conductor cross sections extending from 0.5 mm2 up to 6 mm2. As a result of the zigzag pin arrangement, even in a 7.5 mm pitch, the compact terminal has UL approval for 600 V and has a current-carrying capacity of up to 41 A. The push-lock technology allows conductors to be connected with or without a ferrule. This PC terminal block sets itself apart as a result of the labelling surfaces in the field of view, as well as an easy-of-access test socket.

The sandwich design allows colour coding from one up to 12 positions. The single-position versions are also securely mounted on the PC board as a result of the double pinning arrangement. The new PCB terminal blocks round off the “Combicon power” product range with push-lock technology from Phoenix Contact.


Related links

Topics

Categories


Phoenix Contact, founded over 80 years ago, is a leading manufacturer of electric connection and industrial automation technology. 11,000 employees, 47 own sales companies and 30 sales partner worldwide ensure customer proximity.

Our work is dedicated to the creation of progress with inspiring, innovative solutions and to a trusting partnership towards our customers and partners with common benefits.

Contacts

  • PC Board Connection for High-Current Applications without Tools

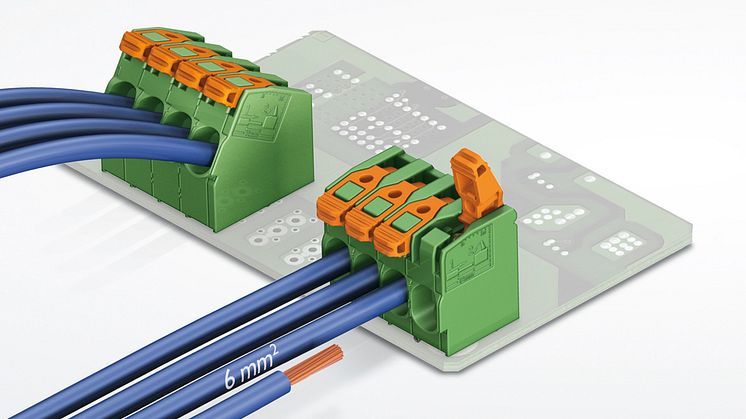

    PC Board Connection for High-Current Applications without Tools
