Push-in PCB connectors for KNX automation

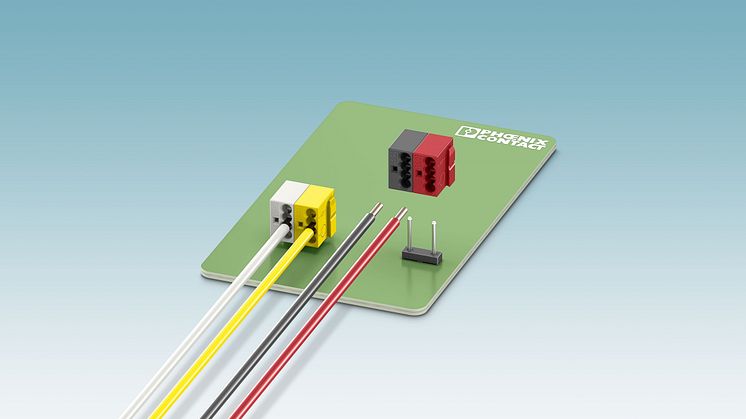

With the PTS 0,5 series, Phoenix Contact is extending its portfolio for building automation to include compact PCB connectors for KNX communication. J-Y(ST)Y installation cables (0.6 mm and 0.8 mm) can be connected tool-free and more quickly via the Push-in connection.

The colour coding enables clear contact assignment. The connectors are designed for currents up to 6 A and voltages up to 320 V and are available in 2-pos. versions. Four connections per potential enable ideal, simple, uninterrupted loop through of potentials for bus applications. The integrated test opening enables quick and convenient testing. The new connector portfolio with a 5.75 mm pitch has a particularly small design and saves space in compact applications. The PST 1,0 series THR-compatible pin strips ensure safe and plug-in contacting with the device’s printed circuit board. They are available in either tape-on-reel or cardboard packaging.
