Shielded SACC connectors with fast connection technology

Press release -

Shielded SACC connectors with fast connection technology

The shielded M12 connectors with IDC fast connection technology from Phoenix Contact enable rapid assembly with easy preparation of the conductors and easy-to-handle connectors.


The connectors consist of just two components. In the case of shielded conductors, only the outer sheath and the braid is removed; the litz wires remain intact.


The connector offers a wide connection range from 0.14 mm² to 0.75 mm². In addition, the maximum conductor external diameter has been extended to 9.7 mm. This means that almost all available signal and data lines can be assembled in the field. The individual wire colours are standardized according to the cable type and must be assigned in the connection area. These colours are reflected in the connection area with colour coding and numerical coding. All common codings such as A, B, D, and X are available for signal and data transmission up to 10 Gbps.

Related links

Topics

Categories


Phoenix Contact, founded over 80 years ago, is a leading manufacturer of electric connection and industrial automation technology. 14000 employees, 50 own sales companies and 30 sales partners worldwide ensure customer proximity.

Our work is dedicated to the creation of progress with inspiring, innovative solutions and to a trusting partnership towards our customers and partners with common benefits.

Contacts

  • Shielded SACC connectors with fast connection technology

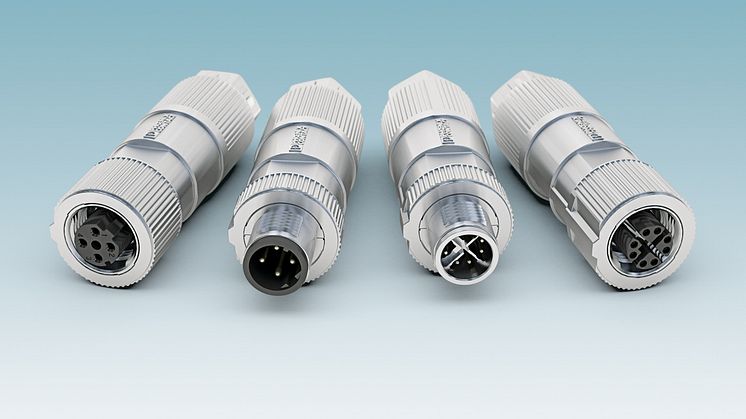

    Shielded SACC connectors with fast connection technology
