Canon technology contributes to Subaru Telescope’s wide field of view

TOKYO, Japan, September 13, 2012—Canon Inc. announced today that the Hyper Suprime-Cam*1
(HSC) ultra-wide-field second-generation prime focus camera, equipped with a corrector lens*2 that
was developed and produced by Canon Inc., has recently been installed in the Subaru Telescope and
began undergoing performance testing on August 28 (Hawaii-Aleutian Standard Time).

The large-scale optical-infrared Subaru Telescope, located at the summit of Mauna Kea, Hawaii, and
operated by the National Astronomical Observatory of Japan (NAOJ), commenced scientific
observation in 1999. To make possible a wider field of view, the NAOJ, working in cooperation with
multiple research institutes, including the Kavli Institute for the Physics and Mathematics of the
Universe (Kavli IPMU), Todai Institutes for Advanced Study, developed the large-field-of-view HSC,
entrusting Canon with the responsibility of developing and producing the camera’s corrector lens unit.

Maximum angle of view expanded approximately three-fold
Because the HSC was to be installed within the existing structure of the telescope, the corrector lens
unit had to satisfy a number of strict restrictions in terms of mass and dimensions. Calling on the design
technologies cultivated by the company over many years, along with measuring and
precision-machining technologies newly developed for the task at hand, Canon succeeded in expanding
the lens’s maximum angle of view from the 0.5 degrees realized by the first-generation Suprime-Cam*3
(SC), to 1.5 degrees. Although the new corrector lens makes possible an angle of view approximately
three times greater than that of the SC through the use of aspherical lenses, it employs only seven lens
elements, the same number used in the SC, and has a lens diameter that is only approximately 1.6-times
larger.
Through a range of space observation equipment, including the ultra-wide-field HSC, the amount of
time required to survey a region of the sky that had previously been estimated at 16 years is now
expected to be possible in only two years.

Reduced weight through advanced measuring and precision-machining technologies
Although the processing of aspherical lenses becomes increasingly difficult as lens size increases,
through the use of precision measuring and machining devices produced in-house, Canon was able to
create aspherical lens elements that deliver advanced imaging performance equivalent to that realized
by the Suprime-Cam corrector lens. Additionally, the unit’s lens barrel, which ensures that the lens
delivers consistently high precision, newly employs a ceramic material that achieves a significant
reduction in weight compared with the material used in the previous lens barrel. The production of the
ceramic lens barrel also made use of Canon’s precision machining technologies.

*1 The Hyper Suprime-Cam is an observation instrument located at the Subaru Telescope’s prime focus that makes
possible wide-coverage observation. Among telescopes with a primary mirror measuring more than 8 m in
diameter, Subaru Telescope is the only one to be equipped with an observational instrument at prime focus. (As
of Sept. 13, 2012, based on a National Astronomical Observatory of Japan survey)
*2 The corrector lens is a lens unit that corrects aberrations in the light gathered by the telescope’s primary mirror to
make possible high imaging performance.
*3 Abbreviation of Subaru Prime Focus Camera

About Subaru Telescope
Since beginning scientific observation in 1999, the Subaru Telescope has set new records in the discovery of most-distant galaxies, contributing to various space observation efforts.
Progress in space research has led to the discovery of a number of new mysteries of the cosmos, such as dark matter and dark energy. With the completion of the Hyper Suprime-Cam, enabling the wide-field viewing of space, expectations are high that research efforts can be further accelerated toward the uncovering of the origins and the future of our universe.
Through the company’s technology, Canon will continue contributing to the development of the world’s science and technology.

# # #
Note: This press release is being issued in conjunction with a release issued by the National Astronomical Observatory of Japan and Kavli IPMU on September 13 at 4:00 a.m. (Japan Standard Time).
For further information please contact Richard Berger (tel: 03-5482-8055; fax: 03-5482-5130; e-mail: richard.berger@canon.co.jp) or Rachel Wilson (tel: 03-5482-3805; fax: 03-5482-5130; e-mail: wilson.rachel@canon.co.jp).

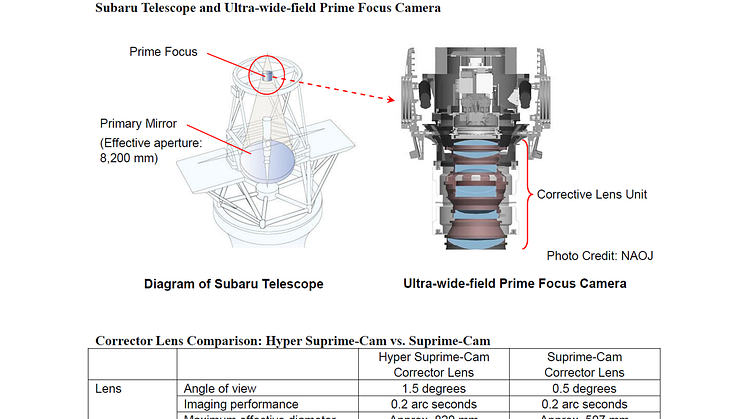

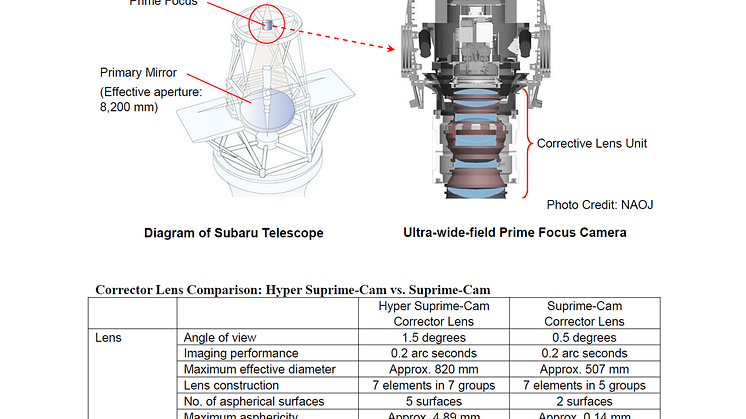

Prime Focus

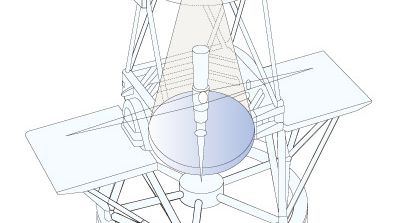

Diagram of Subaru Telescope
Primary Mirror
(Effective aperture: 8,200 mm)
Ultra-wide-field Prime Focus Camera
AA

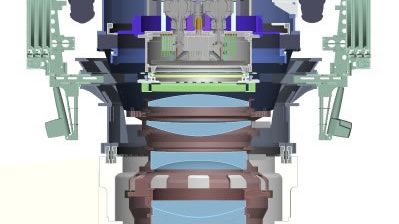

Corrective Lens Unit
