Small stepper motor with high power

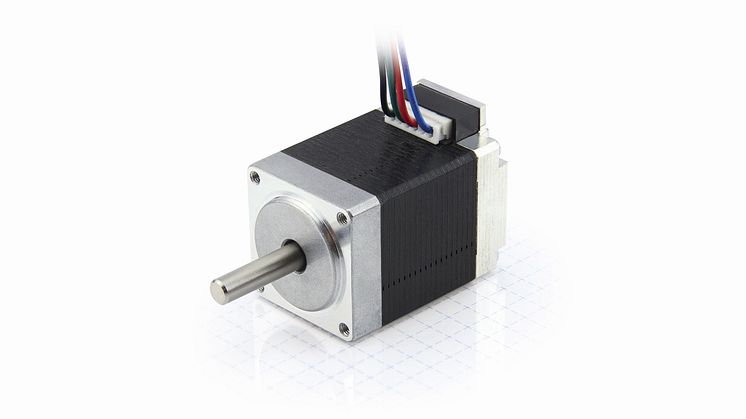

With the SC2818, Nanotec presents a stepper motor with a flange size of 28 mm
and a torque of up to 0.22 Nm. The SC2818 thereby boasts in excess of 30% more
torque than conventional motors of the same size. The step angle of the 2-phase
hybrid stepper motor is 1.8°.

Like the other SC series motors from Nanotec, the SC2818 has an integrated connector,
thus making it easy to adapt cables for customized applications. A connection cable is
included in the scope of delivery.

The SC2818 motors are available in three lengths, each with one or two shafts. The
version with the B-shaft is optionally offered with an NOE1 encoder with up to 2000
increments/revolution.

Due to its high torque and small size, the SC2818 motor series is ideally suited for use
in laboratory automation or in service robotics.
