High-performance DC motor with integrated controller

Nyhet   •   Dec 02, 2015 10:05 CET

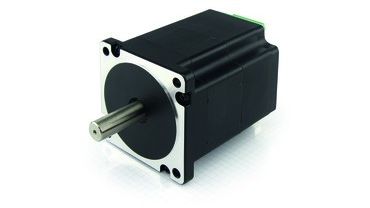

With the PD6-C Nanotec introduces a brushless DC servo motor with integrated controller that delivers very high power density in relation to its size.

The PD6-C is the largest motor in the Nanotec Plug & Drive series and is available in two versions – as a high-pole stepper motor in various lengths with a maximum nominal torque of 8.8 Nm, as well as a low-pole BLDC motor with 80 or 86 mm flange size and a nominal output of 534 W. Both motor types are designed for 12-48 V supply voltages. The motor controller and the encoder with 4096 increments are integrated in the motor. All Plug & Drive motors use field-oriented control via encoder and can be operated in torque, speed, or positioning mode.

Reference values are set either by clock-direction, two analog inputs, or the CANopen field bus. The controller is programmed with NanoJ V2 so that real-time programs for time-critical applications can be run directly on the motor. In stand-alone operation the motor will carry out complex control tasks without a field bus connection. For parameterization a USB port is available.

The PD6-C is ideally suited for applications that require high power density and high efficiency as well as compact size, for example in service robotics or mechanical engineering.

Don´t miss to visit Nanotec on the following fairs in 2016

All about automation, 16-17 March 2016, Essen
SMART Automation Austria, 10-12 May 2016, Vienna
AUTOMATICA, 21-24 June 2016, Munich

Don´t hesitate to contact your reseller in Sweden
SOLECTRO AB
www.solectro.se
