Save Space - New Two-Wire Transducer and Constant Voltage Source

Press Release   •   Jul 16, 2012 10:18 BST

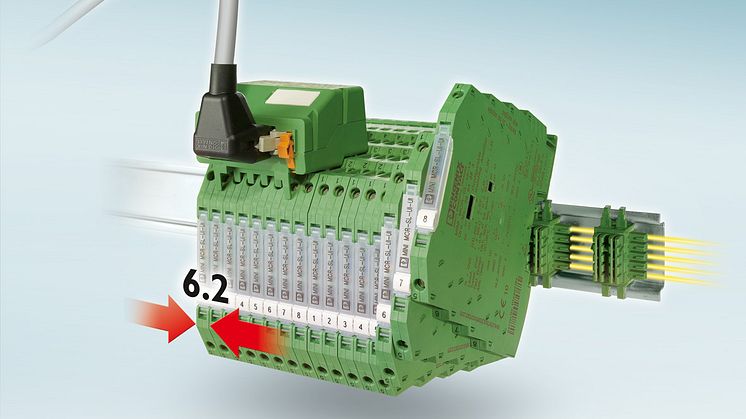

The Mini Analogue family of 6.2mm isolation amplifiers from Phoenix Contact has been expanded to include a new passive two-wire transducer and a high-precision constant voltage source. The Mini MCR-SL-UI-LP-NC isolation amplifier, powered by the output loop, makes it possible to connect to active analogue input modules. It isolates, converts, and filters analogue signals from 2 mA to 40 mA and from 50 mV to 30 V. On the output side, the isolation amplifier works with a 4-20 mA loop. The DIP switch, accessible from the side, allows you to quickly and easily configure the isolation amplifier, with no time-consuming software configuration. A large number of adjustable input signal ranges as well as zero/span adjustment make a wide variety of applications possible.

The Mini MCR-SL-CVS-24-5-10-NC module is the most compact constant voltage source available on the market. It delivers precise voltages from 2.5 V DC, 5 V DC, 7.5 V DC, or 10 V DC for use in potentiometers, bridge circuits, and other sensors. This setting is selected using the DIP switches on the side. Voltages of 9.6 V DC to 30 V DC can be applied on the input side. Inputs and outputs are electrically isolated. The new Mini Analogue modules offer well-known advantages such as: low power loss, high measuring accuracy, optional screw or spring-cage connection technology, efficient power supply using power bridging, and a system cabling concept.

Phoenix Contact, founded over 80 years ago, is a leading manufacturer of electric connection and industrial automation technology. 11,000 employees, 47 own sales companies and 30 sales partner worldwide ensure customer proximity.

Our work is dedicated to the creation of progress with inspiring, innovative solutions and to a trusting partnership towards our customers and partners with common benefits.
