System Cabling for Modicon M340 with 16 Digital I/Os

Press Release   •   Aug 05, 2013 09:13 BST

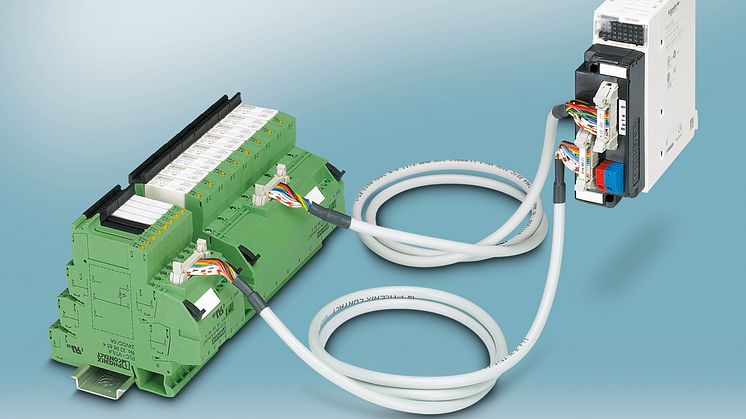

The latest addition to the Varioface system cabling range allows a connection to be established to the input/output boards of the sixteen-channel digital I/O components of the Modicon M340. This means that wiring is reduced to just a few steps: The new front adapters are simply plugged onto the assemblies and fastened with screws. The front adapters integrated in an encapsulated casing are connected with the interface modules using pre-assembled system cables.

Labelled plug connectors and marking options on the casing ensure clear allocation of the signals. Optionally, the assembly's voltage can be supplied via the terminals on the adapter - or via the transfer modules. These are available as passive components with different connection methods, including knife disconnection. The active components with relays and opto-couplers switch loads up to 250 V AC/10 A and can handle inrush currents of up to 130 A. This makes them especially suitable for lamps and capacitive loads.

Using the intelligent Varioface solutions, the I/O signals of the Modicon M340 system can be easily amplified or adapted. This is done quickly, with clean wiring and without errors.


Phoenix Contact, founded over 80 years ago, is a leading manufacturer of electric connection and industrial automation technology. 12,000 employees, 47 own sales companies and 30 sales partner worldwide ensure customer proximity.

Our work is dedicated to the creation of progress with inspiring, innovative solutions and to a trusting partnership towards our customers and partners with common benefits.
