The most compact Motion Control System on the market

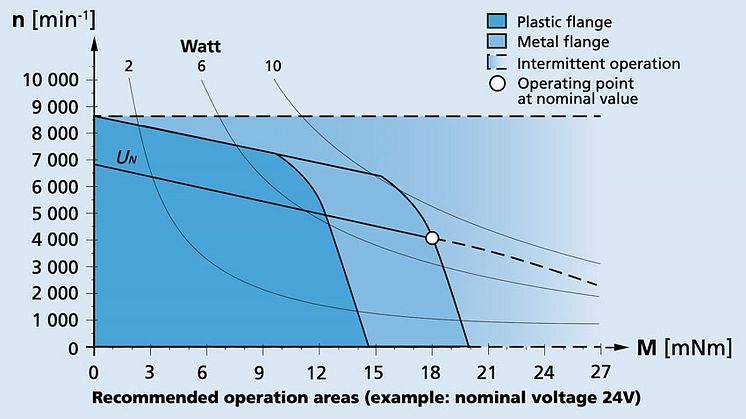

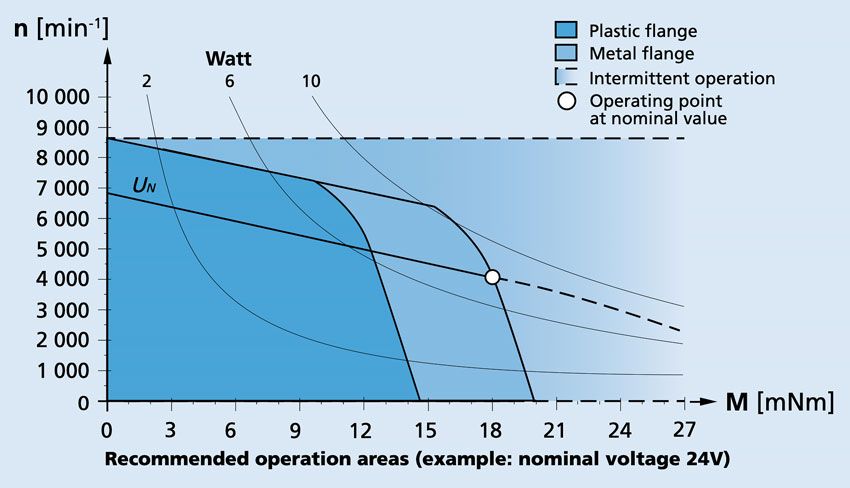

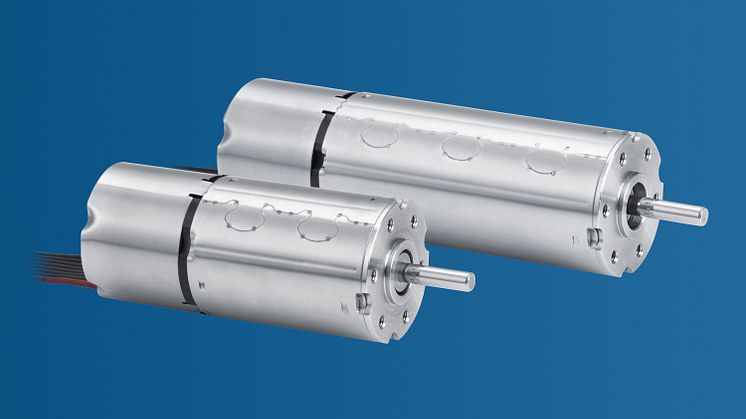

Faulhaber’s new motion controller is now integrated into the powerful brushless motor series FAULHABER 22xx…BX4. The combination provides an impressively broad range of functions and performance. The motor integrated motor control unit (IMC) is only 18mm longer than the motor itself and includes servo control and a 12-bit encoder. With the new drive electronics, you can unleash the full performance of the BX4 motors. The new V3.0 software in the IMC allows users to achieve over 15% more torque compared to the previous CSD series.
The version with RS232 is ideal for integration with a PC or a custom-developed supervisory system. The CANopen version is perfect for networks in industrial automation.

IMC meets the standard for servo drivers, CiA 402, making it compatible with most different PLC systems on the market. Simple tasks such as homing can be performed via the integrated Motion Controller through the digital and analog I/O. Both the RS232 and CANopen versions can be controlled in what is called stand-alone mode. The digital and analog I/Os can be used very flexibly to perform tasks such as regulation, set-point and actual values. Of course, the 22xx…BX4 IMC can be combined with many other products from FAULHABER such as the compact gearboxes GPT and the new series of linear actuators 22.
