Tool-free wiring of M12 Power connectors

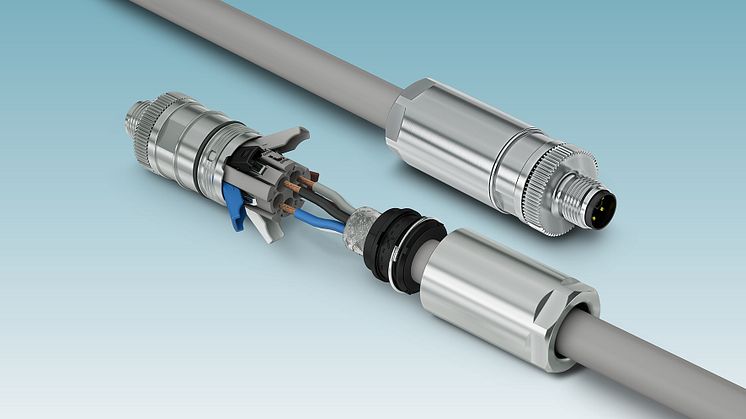

The M12 Power connectors with Push-Lock connection from Phoenix Contact allow conductor connections to be made in AC and DC applications up to 16 A and 690 V easily and without tools for the first time.

This is because the clamping chambers of the connector for assembly are opened and closed easily using a lever. This means the user has both hands free to insert the conductor, and installation is simplified significantly.

The colour and numerical codings in the connection area ensure intuitive assignment of the individual conductors. The long-term durable, vibration-resistant PE connection to all metal components provides protection against electric shock. The optional 360° shielding ensures reliable operation of the system in environments that are subject to high levels of electromagnetic interference. The metal housings are reliably sealed up to IP65/IP67 degree of protection and can be used in demanding industries or special applications.
