Angled PCB terminal block for power electronics

Press Release   •   Sep 24, 2014 10:33 BST

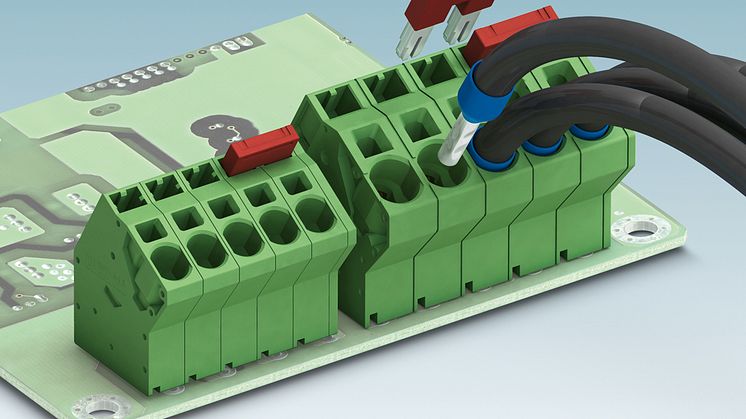

The new SPTA series PCB terminal blocks from Phoenix Contact offer a 30 degree angled cable connection funnel for convenient conductor connection. The SPTA 5 terminal block is designed for a conductor cross section of up to 6 mm² and an currents of up 41 A, with a 7.5 mm pitch. With regard to the SPTA 16 version, up to 76 A can be transmitted for 16 mm² conductors, with the 10 mm pitch. The corresponding insulated jumpers enable the easy connection of multiple positions.

Thanks to push-in technology, the conductors are easily connected without tools and can be released without the need for any special tools. Both PCB terminal blocks have an unlimited 600 V UL approval and 1000 V according to IEC, due to the compact zigzag pinning.

Phoenix Contact extends its product range for high-current applications with the PCB terminal blocks from the SPTA series, which can be bridged.

Phoenix Contact, founded over 80 years ago, is a leading manufacturer of electric connection and industrial automation technology. 12,800 employees, 47 own sales companies and 30 sales partner worldwide ensure customer proximity.

Our work is dedicated to the creation of progress with inspiring, innovative solutions and to a trusting partnership towards our customers and partners with common benefits.
