Modular marshalling patchboard concept with innovative colour coding system

Press Release   •   Aug 10, 2015 11:07 BST

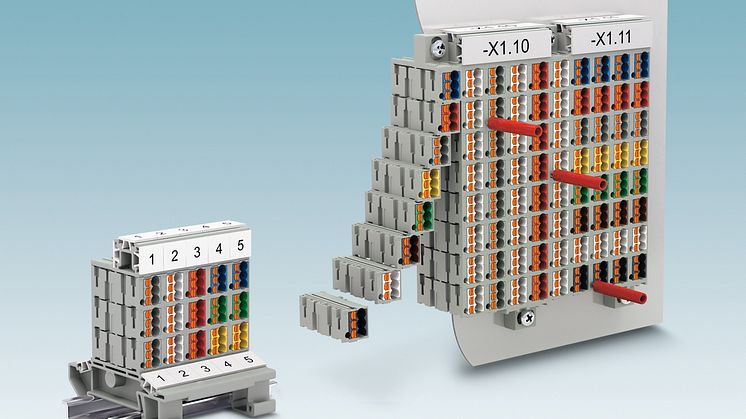

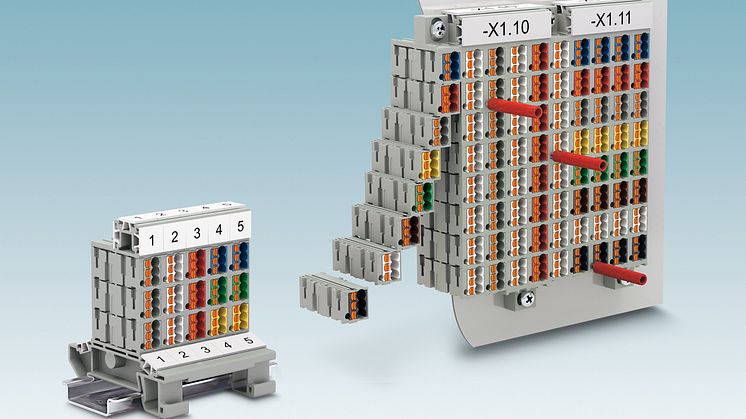

The new push-in PTMC marshalling patch-boards from Phoenix Contact achieve up to 20 percent higher packing density with marshalling wiring in process technology, thanks to the modular concept and the compact design.

The individual marshalling patch-board elements snap into place easily and securely and can also be coded using eleven different colours. This ensures clearly arranged and fault-free wiring. The precise number of positions and the blocked form design, ideal for various applications, create a stable patch-board construction that is resistant to warping. The 2.3 mm test connections are easily accessible, next to the connection points, enabling convenient testing with standard testing accessories. The pre-assembled marshalling patch-boards are available with four or six push-in connections per element in 32, 48 and 80-pos. designs. In terms of mounting type, there is a choice of direct, 19" rack and DIN rail mounting.

The PTRV marshalling terminal system is the most compact on the market with a length of just 100 mm. It offers additions options for easy and clearly arranged marshalling wiring. Its key features include freely selectable colours, easily accessible test connections, and large-surface matrix marking.

The marshalling terminals and marshalling patch-boards are designed for use in Ex i safety circuits up to 60 V and are available as blue versions.

The marshalling patch-boards, which can be self-assembled, are configured and ordered with just a click of the mouse in the product area on the website.

Phoenix Contact, founded over 80 years ago, is a leading manufacturer of electric connection and industrial automation technology. 12,800 employees, 47 own sales companies and 30 sales partner worldwide ensure customer proximity.

Our work is dedicated to the creation of progress with inspiring, innovative solutions and to a trusting partnership towards our customers and partners with common benefits.
