Nyhet -
FIXTURLASER NXA Ultimate

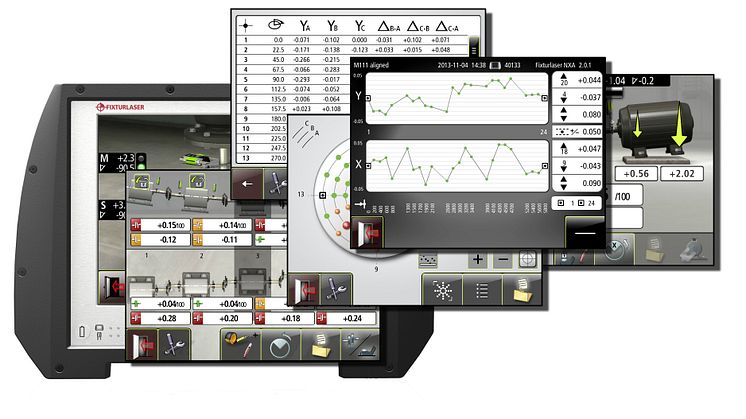

The combination of alignment and geometric routines allows the user to address many of the root causes of outages as part of a complete preventive maintenance program. With a wide range of applications, a screen interface featuring animated 3-D images and a large color touch screen (6.5″) the NXA Ultimate is remarkably user friendly.
- Largest range of alignment plus geometric applications
- Geometric routines for straightness (includes bore) and flatness (circular & rectangular)
- Flatness routine compliant with Ariel ER-82 specification and worksheet
- Intuitive interface
- Large touch screen
- Color coded results
- Improved 3D animations with video game quality graphics
- MEMS gyroscope built-in to both sensors and the display unit
- Large 30 millimeter 2nd generation scientific grade CCD sensors
- Wireless Bluetooth® II built-in to small form factor sensors
- Lifetime warranty
Shaft Alignment
-
Horizontal Machines -
Vertical Machines -
Machine Train -
Spacer Shaft -
Circular Flatness -
Rectangular Flatness -
Straightness
Utilities
-
Soft Check™ -
Feetlock™ -
Hotcheck™ -
Target Values -
Memory Manager -
Machine Defined Data
What’s Included
- Full VGA 6.5″ color display, TFT-LCD backlit, sunlight readable, with wide angle viewing technology
- M3 moveable machine transmitter/detector with 30mm CCD sensor and built-in Bluetooth II
- S3 stationary machine transmitter/detector with 30mm CCD sensor and built-in Bluetooth II
- NXA V brackets, including 4-150mm rods and 2-470mm chains
- Two 970mm extension chains
- Rod extension kit, 4-100mm
- Two 150mm rods
- 49mm offset bracket
- NXA extension fixture
- Angled Universal Rod tools (2)
- Magnetic base for mounting on large diameter shafts
- Magnetic V-brackets (2) for applications where chain brackets won’t fit
- External power supply NXA built into carrying case
- T21 laser transmitter for flatness applications, includes mounting kit
- RM (Movable Receiver) laser receiver with BT-2 Bluetooth
- Carrying case – IP-65, high impact ABS
- NXA tape measure
- USB stick
- Manuals – NXA (printed and CD) and Geometry (printed and CD)
- Lifetime warranty standard
Expansion Kits
- Dial Indicator Target Values software for NXA
Accessories
V-Bracket complete
Extension Chain
Rod Kit, 4 – 100mm rods and holder
Rod 2.375
12″ Tapped Rod
Measuring Tape
- Tightening Tool
Magnetic Base
- Extension Fixture, 49mm
Extension Fixture, 94mm
Extension Fixture, 75mm, Arm Only
Thin Magnetic Bracket, pair
Fixturlaser Thin Mag Bracket w/non-skid pad, pair
Thin Chain Fixture
- Non-Rotating Shaft Thin Mag Bracket w/Index Bolts
- USB Power Supply
-
- NXA Offset (Cardan) Software
BT-2 RM Bluetooth Transmitter
- OffsetXA Expansion Kit (Cardan/Offset Fixture)
- OL2RXA Expansion Kit (OL2R Brackets)
- NXA OL2R Software
-
