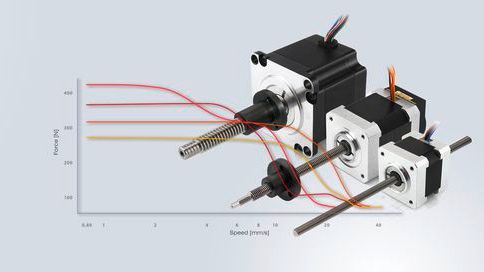

The performance curves enables you to compare the relationship between force and speed.

Blogginlägg -

The performance curves enables you to compare the relationship between force and speed.

The universally employable linear drives from Nanotec enable a wide range of new,
low-priced and powerful applications

  • Simple and flexible motor construction of the linear stepper motor considerably
    reduces system costs
  • Stroke-independent movement to any position
  • Reproducible high resolutions (1μm) and rapid feeding (300mm/s) at a constant
    construction volume open up the possibility of standardized design platforms
  • Direct force coupling to the load requires no additional components on the linear
    drive, thus offering rigid and light-weight mechanics
  • Static screws enable highly dynamic and rigid machine constructions as well as
    multimotor operation
  • Due to the low energy requirements, even high forces can be delicately regulated
  • Partly self-locking so no additional brake is necessary
  • The stroke is only dependent on the available screw length
  • Linear stepper motors are suitable as a substitute for hydraulic and pneumatic
    cylinders and offer considerably higher flexibility
