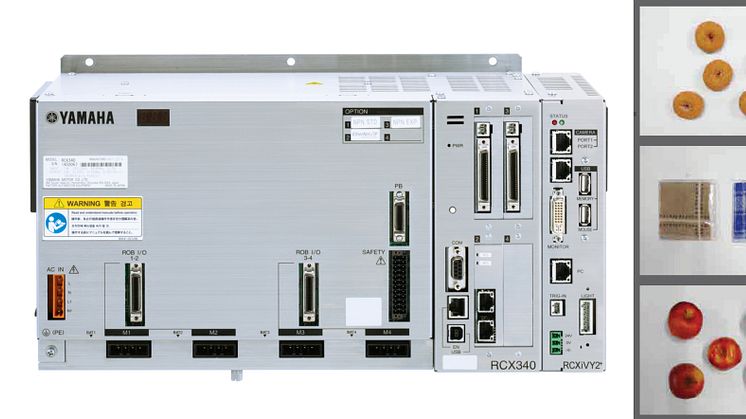

RCX340 Controller and RCXiVY2+ (LEFT),  Handles Irregular Shaped Products such as Foodstuffs and Clothing (RIGHT)
RCX340 Controller and RCXiVY2+ (LEFT), Handles Irregular Shaped Products such as Foodstuffs and Clothing (RIGHT)

Press release -

Yamaha Motor Launches New RCXiVY2+ Vision System - Capable of Detecting Irregular Shaped Objects; also Applicable to Food, Pharmaceuticals, Cosmetics, and Clothing -

IWATA, May 14, 2020 - Yamaha Motor Co., Ltd. (Tokyo: 7272) announced today that it will launch the RCXiVY2+ vision system, which features a new “blob detection” enabling picking, presence recognition, and high-speed counting of multiple workpieces for irregular shaped objects such as foodstuffs and clothing, on June 1. As the successor to the existing iVY2, in addition to new functionality this new model features a high-performance camera and improved processing capability, enabling up to 45% detection time reduction compared to the current model.

A feature of Yamaha Motor’s vision system is its integration with robots by incorporating a vision board, lighting board, and tracking board in the RCX3 series multi-axis robot controller. This advanced integration enables unitary management of robot control, image processing, lighting control, and conveyor tracking data processing with only the robot program, significantly reducing equipment setup time. The further addition of “blob detection” functionality means that the system can now handle products such as foodstuffs and clothing - which tend to have greater variation in shape and size compared to industrial products - expanding its possible range of applications.





■ Market Background

The industrial robot market continues to grow due to the declining labor force and rising wages driving requirements for increased factory automation. In addition to the automotive, electrical, and electronics industries, in recent years the utilization of industrial robots has also been increasing in industries such as foodstuffs, clothing, and cosmetics. In response, Yamaha Motor has developed vision systems optimized for detection of irregular shaped objects, which are characteristic of industries such as foodstuffs, pharmaceuticals, clothing, and cosmetics.



■ New Functions of the RCXiVY2+

- Blob detection which excels in recognizing irregular shaped objects

The word “blob” evokes the image of an amorphous lump or mass. Blob detection functions take greyscale images (including variations in light and shade) captured by cameras, and apply certain threshold value criteria, converting them to black and white gradations through binary coded processing. This detection method can then recognize the presence/absence, number, size, etc. of blobs.
The RCXiVY2+’s blob detection can recognize workpieces between two and ten times faster than in the edge detection functions of previous models. This upgrade means that the new model can handle tasks such as picking, presence recognition, and high-speed counting of multiple workpieces of irregular shaped objects such as foodstuffs and clothing. The combination of the RCXiVY2+ and SCARA robots is ideal for high-speed conveyor tracking.

- Performance improvement

The search speed has been improved by 8 to 45% because of the improvement of CPU. In addition, the adoption of a high-performance camera has improved the number of pixels and frame rate.



■ Other Features

- Simple auto-calibration function

High-precision camera calibration can be completed simply by following the easy-to-use wizard.

- Simple workpiece registration function

Workpiece registration takes just three steps - image capture, contour setting, and detection position registration.

- Integrated control of the vision program using only the robot program

There is no need to create a coordinate conversion program thanks to unified management from the robot program.

- Also handles moving cameras

Coordinates can be automatically converted to suit a robot's movements when a camera is installed on the robot.

- Wide range of product registration is possible

254 product types can be registered for use in detection, meaning that changeover work can be carried out simply by changing the product number.

- Monitoring of detection status while robots are running in automatic mode

With the RCXiVY2+ Studio and an external monitor, monitoring of detection status while robots are running in automatic mode as well as reference mark detection status during calibration setting are possible.



■ Specifications
