Fixturlaser Bore Fixture!

Nyhet -

Fixturlaser Bore Fixture!

Fixturlaser fixture kit, Bore Fixture ø290-620mm are available for full and half bore measurements with the Fixturlaser NXA Geometry package.

Easy to setup!

Step 1

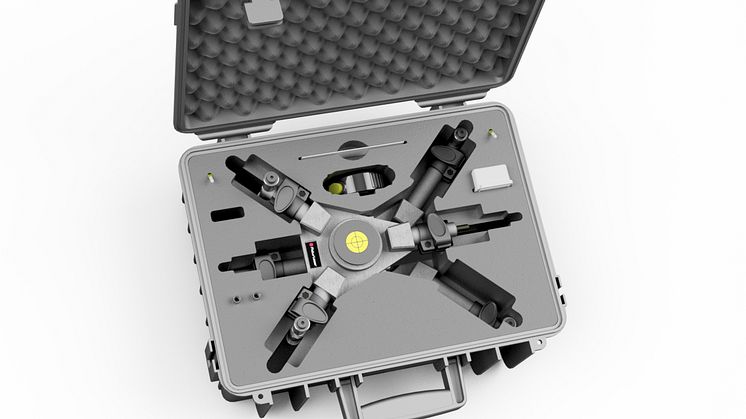

Assemble the Fixturlaser receiver with the rotationnal centre Bore Fixture ø290-620mm in its case Fixturlaser Bore Fixture

Step 2
Measure the bore diameter and select fixture If necessary change the rotation unit to the selected fixture.


Step 3
Adjust the length of the legs to the bore diameter The receiver will now be positioned in the centre of the bore
within ±1 mm. Fixturlaser Bore Fixture

Step 4

Place the fixture in the bore and press the spring loaded leg upwards. Make sure that everything is locked, tight and
resting in all contact points.


Step 5
1- Release the probe and adjust the position of the spring loaded receiver fixture to the centre. Use the marked line.
2- Lock the probe and make sure that the locking mechanism is tightened.
Fixturlaser Bore Fixture

Step 6

During measurement, lift gently when you change position of the probe. Avoid movement of the fixture to archive
accurate result.

Step 7

The complete set up with the additional fixture for laser transmitter!!
